Fastjet F560
CIJ Printers
Leading and innovative CIJ technology.
The modular design improves the stability and brings with quick maintenance and better printing effects.
Innovative design
High technology
Modular design
Quick maintenance
Three bulit-in printing modes
Brand new man-machine interactive system
The F560 has been designed to deliver the best quality code, day in and day out. The F500 is feature packed with Cost Saving features of single part service and solvent consumption saving system. Reliability of operation with a robust stainless steel design which survives even in the harshest environments. Quality of printing delivered using the lastest automatic monitoring system. Simplicity of setup, service and operation through an easy to use menu system. Powerful and flexible print data options through network or local scanners. The F500 gives the perfect performance with a low cost of ownership.
More stable printhead
The optimized and upgraded printheads integrate modules such as heating, phase detection and amplification, positive air pressure output, high voltage insulation and printhead valves adapted to pigment ink.
Modular design
Industrial aesthetics and modular design, and IP55 protection level improve the stability of machine.
Display of Print Sample
The F540 series CIJ is available in 750ml and
375ml ink cartridges, reducing operating costs.
Specifications
Printing Capability
Nozzle Bore：70/60/50/40 μm
Print Helght：1.2~15mm
Print Lines：1~3Lines(5X7)
Maximum Printing Dot-matrix：25 Dots
Printing Distance：2~15mm
Maximum Printing Speed：320m/min
Input System：Standard American Keyboard
Dot-maxtric Font：5X5, 7X5, 9X7, 11X9, 16X11, 24X16, 32X24
Printing Capability
Ink Types：750ml/375ml Cartridgrs Ink
Ink Colour：Black, Yellow,etc
Makeup：Select According to Ink Type
Cleaning Agent：Select According to Ink Type
Specifications
Printhead：Temperature in printer head remain
Printhead Diameter：41mm
Printhead Length：260mm
Umbilical Length：2700mm
Umbilical Diameter：21mm
Umbilical Bending Radius：150mm
Electricity：100-240VAC, 50Hz
Power：120W~150W
Net Weight：27kg
Temperature/Humidity Range：5~45℃, Relative Humidity 30~90% Frost-free
Other Instructions

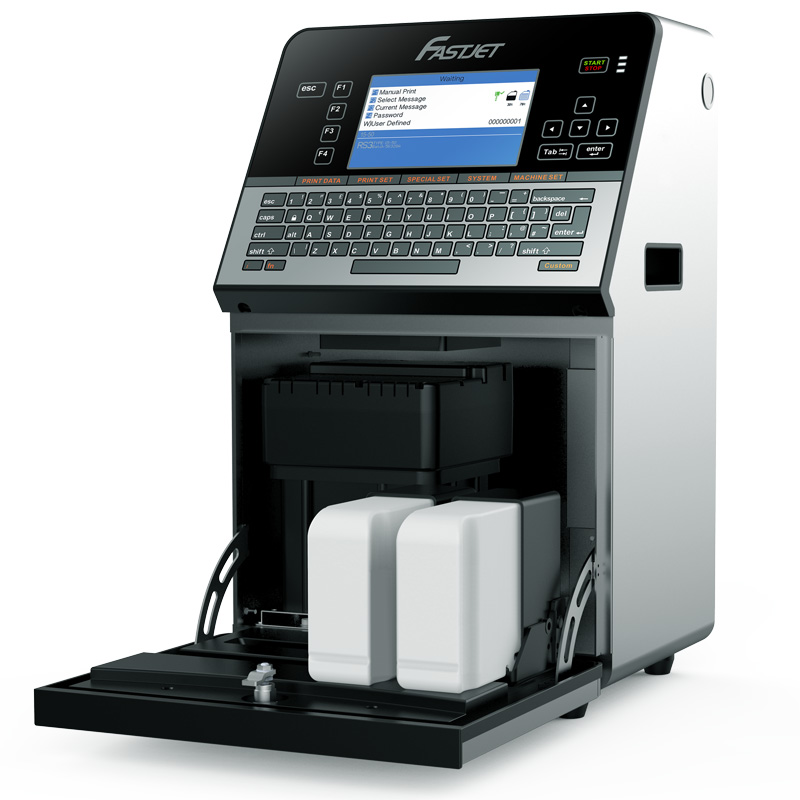

Consumables Addition：Drawer, Plug-in Add Method
Communication Function：RS232 Serial Port, USB Interface
User Fields：QR Code, Barcode, Logo, Clock, Counter, shift, etc
Message Editing：WYSIWYG Editing Interface, Chinese Pinyin Input
Printer
Printerhead
