iT4B

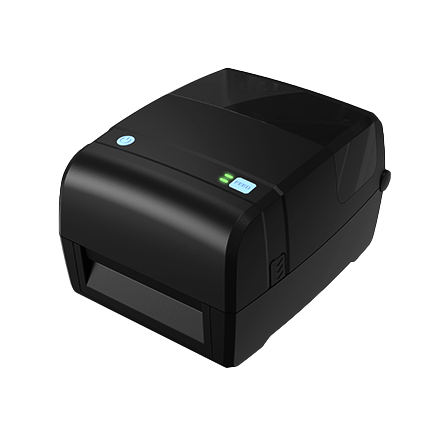

iT4 Series Desktop Barcode Printer
- Standard thermal transfer desktop barcode printer with 300-meter ribbon supported.
- The modular design of print head makes the disassembly and assembly easy.
- With free label editing software Bartender to make the label editing convenient and easy.
- With various media to meet the demand of wide area.
- Refined black housing with printer mechanism, stable and durable.
32-bit
RISC processor
6 ips
Printing Speed
108mm
Print Width
203dpi/300dpi
Resolution
Fashionable Appearance
Black shell
Weight: 2.90 Kg
Multiple communication interfaces
Standard interfaces: USB, Ethernet port
Optional interfaces: Bluetooth, Wi-fi
Specification
| Item | Parameter | |
|---|---|---|
| Printing | Printing Method | Thermal transfer/Direct Thermal |
| Resolution | 203dpi, OPT 300dpi | |
| Max. Printing Speed | 6ips(203dpi)， 4ips(300dpi) | |
| Max. Printing Width | 108mm/106mm | |
| Max. Printing Length | 2000mm | |
| Protocol | ZPL，ZPL-II,DPL,TSPL,EPL | |
| CPU | 32-bit RISC CPU | |
| Memory | RAM | 16MB |
| Flash | 16MB | |
| Detection | Sensor | Out-of-paper detection, gap detection, ribbon detection, black mark |
| detection, cover-opening detection | ||
| Media | Types | Black mark label or punched hole label or folding or rolling die cutting label |
| Width | 1'' (25.4mm) ‒ 4.33'' (110mm) | |
| Height | 0.0787'' (20mm)‒ 9.84'' (250mm) | |
| Thickness | 0.002''(60um)-0.01''(250um) | |
| Label Roll Diameter | 5''(127 mm) Max | |
| Core Diameter | 0.5''(12.7 mm), 1''(25.4 mm). 1.5''(38 mm) | |
| Ribbon | Type | Wax, Wax/Resin, Resin |
| Width | 2'' (50mm) ‒ 4.38'' (118mm) | |
| Length | 984'(300 m) | |
| Core Diameter | 1''(25.4 mm) | |
| Print Protocol | ZPL, TSPL | |
| Software | Label Design Software | iDPRT BarTender Ultralite (professional and higher versions are |
| available for trial), iDPRT Label Designer | ||
| Driver | Windows Vista7,8,10, Server 2012/2016/2018,MacOS,Linux | |
| Resident Fonts | Bitmap fonts | 6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 magnification. |
| TTF fonts | CG Triumvirate™ times expandable in horizontal and vertical | |
| directions, simplified Chinese. | ||
| Code Pages | DOS437,720,737,755,775,850,852,855,856,857,858,860,862,863,864,865,866, | |
| Windows 1250,1251,1252,1253,1254,1255,1256,1257,1258, | ||
| ISO8859-1,-2,-3,-4,-5,-6,-8,-9,-15 | ||
| Barcodes | 1D | Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave |
| 2 of 5, EAN-8, EAN-13, EAN-128,UPC-A, UPC-E, EAN and UPC 2 (5) digits | ||
| add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11 | ||
| 2D | PDF417, Maxicode, Data Matrix, QR Code, Aztec | |
| Interfaces | Standard | USB, Ethernet |
| Optional | Bluetooth 4.0/BLE, WiFi | |
| Control Panel | Two-color status light: standby, abnormal indication | |
| Control button: feed button, power button | ||
| Power Supply | Power Switch | |
| Input: AC 100-240 V, 50/60 Hz | ||
| Output: DC 24 V / 2 A | ||
| Environment | Operation | 41℉(5℃) to 104℉(40℃) , humidity 30% to 85% , non-condensing |
| Storage | -4℉(-20℃) to 122℉(50℃), humidity 10% to 90% , non-condensing | |
| Physical Characteristic | Dimension(L*H*W) | 308*250*180mm 2.8kg, excluding media |
| Weight | ||
| Options & Accessory | Peeler module, cutter module, external label roll holder | |
| Agency Approval | CCC,CE,FCC |
