F8100C

Brand new completely modular CO2 laser marking system

Adopting memory system for unexpected powering off and automatic restoring of all the settings after restarting

Embedded operating system base on Linux, dedicated machine for special use, natural immunity to various computer viruses.

Brand New Structure Design

Monolayer mainboard
Dual power supply
Multiple protection circuits
Modular optical electric system

User Friendly man-machine interaction system

Clean and tidy for easy operation
What you see is what you get operation system
Air cooling enabling maintenance free and longer lifetime for laser source

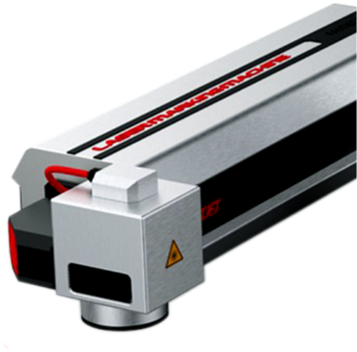

Newly designed printerhead

Compact and light, easy to carry and installed
High gravity and latest technology call laser source adapting to most macterious in most industries
Flexibility adjusted bracket enabling easy installation in different production lines

Display of Print Sample

Specifications

Marking speed:
Up to 2,000 characters/second^⑴

Line speed:
Up to 200/min^⑴

Focus options:
Standard F160（100×100）
Optional F73（50×50)，F100（70×70)，F230（140×140)，F254（175×175)，F300（210×210)，F330（250×250)，F450（300×300)，F592（400×400）

Wave lengths:
10.6um、10.2um and 9.3um

Marking format:
Standard industrial fonts (Type1 Windows®TrueType®) and single line font

Machine readable codes (OCR, 2D matrix, etc)

Bar codes: code128A, code128B, code128C, code39, code93,

QR-Code, Data Matrix, Aztec-Code, Han Xin-Code

Graphics, Logos, symbols, etc

Linear, circular, angular, reverse, rotate sequential and batch numbering

Automatic date, layer and time code, real time clock

Dot model will be faster for marking

Laser tube:
Sealed CO₂ laser

Beam deflection:
Steer beam with digital high-speed galvanometer scanners

Focus options:
Focal lengths (mm)： 70 110 145 175 200 220 250 300;

Flying marking is not recommended for above 200

User interface:
Personalized touch control screen, humanized operation, easy to learn

^⑴Maximum marking and line speed is application dependent

Communication:
UDP,TCP/IP and RS232

Inputs for encoder and product detector triggers

4 inputs/4 outputs for start/stop signals, machine/operator interlocks, alarm outputs; in addition to the safety circuits

Customer-specific solutions available

Integration:
Flexible beam delivery options (beam extension unit/beam turning unit)

Electrical requirement:
110-240 VAC (To be noted when ordering),〜50/60 Hz,

1 PH，0.70kW / 2PH，1.50kW

Cooling system:
Air cooled

Environment:
Temperature 5-40° C ⑷-104° F)

Humidity 10%-90%, no condensing

Sealing and safety standards:
Cabinet: IP54 standard

Marking Unitf Optical core components): IP54 standard

Weight:
Standard unit: approx. 34kg，39kg（60W）

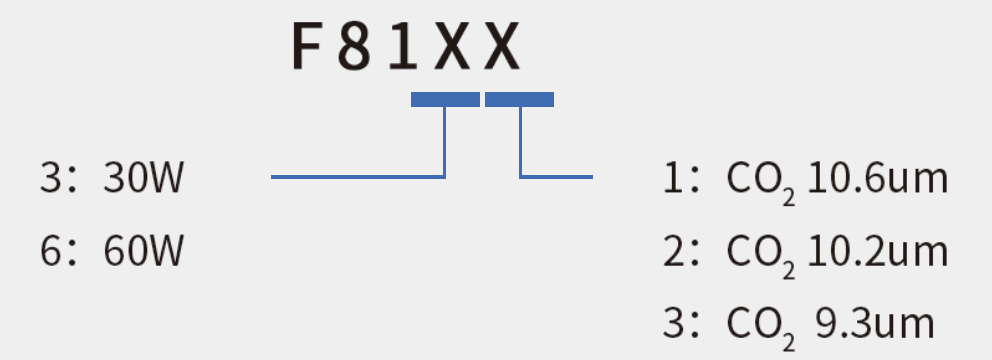

Specific model:
