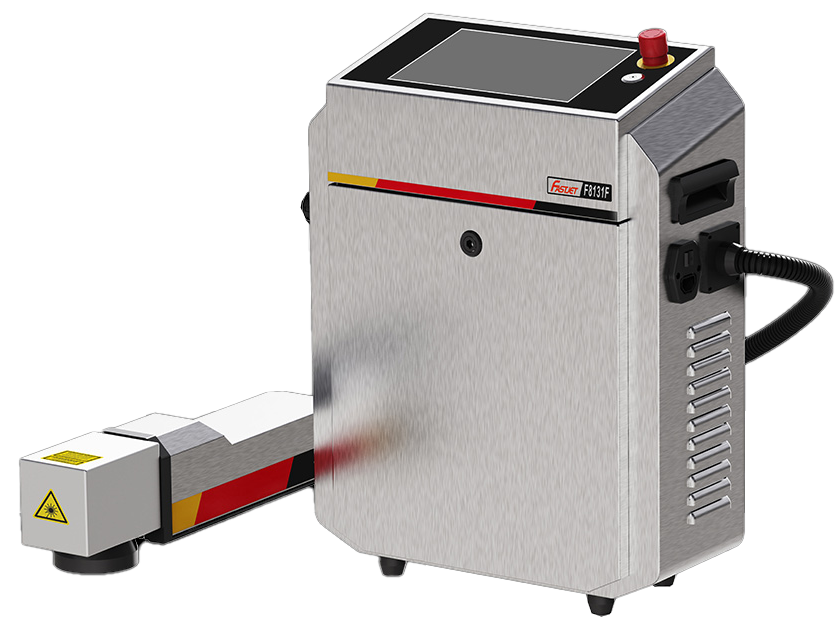

F8100F

Brand new completely modular laser marking system

Support unexpected power off memory function, automatically restore the Settings after power on

Adopting memory system for unexpected powering off and automatic restoring of all the settings after restarting.

Brand New Structure Design

Monolayer mainboard
Dual power supply
Multiple protection circuits
Modular optical electric system

User Friendly man-machine interaction system

Clean and tidy for easy operation
What you see is what you get operation system
Air cooling enabling maintenance free and longer lifetime for laser source

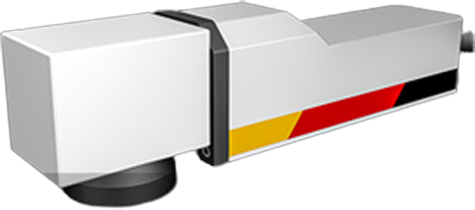

Newly designed printerhead

Compact and light, easy to carry and installed
High gravity and latest technology call laser source adapting to most macterious in most industries.
Flexibility adjusted bracket enabling easy installation in different production lines.

Display of Print Sample

Specifications

Marking speed:
Up to 2,000 characters/second^⑴

Line speed:
Up to 200/min^⑴

Wave lengths:
1055-1070 nm

Marking format:
Standard industrial fonts (Type1 Windows®TrueType®) and single line font

Machine readable codes (OCR, 2D matrix, etc)

Bar codes: code128A, code128B, code128C, code39, code93,

QR-Code, Data Matrix, Aztec-Code, Han Xin-Code

Graphics, Logos, symbols, etc

Linear, circular, angular, reverse, rotate sequential and batch numbering

Automatic date, layer and time code, real time clock

Dot model will be faster for marking

Laser tube:
Ytterbium (Yb) pulsed fiber laser

Beam deflection:
Steer beam with digital high-speed galvanometer scanners

Focus options:
Standard: F160 (110×110)

Optional:F63（50×50），F100 (70×70)，F210( 140×140)，

F254 (175×175)，F330（220×220），F420（300×300）

User interface:
Personalized touch control screen, humanized operation, easy to learn

Communication:
UDP,TCP/IP and RS232

Inputs for encoder and product detector triggers

4 inputs/4 outputs for start/stop signals, machine/operator interlocks, alarm outputs; in addition to the safety circuits

Customer-specific solutions available

Electrical requirement:
110-240 VAC (To be noted when ordering),〜50/60 Hz, 1 PH, 0.70 KW

Cooling system:
Air cooled

Environment:
Temperature 5-40° C（41-104° F）

Sealing and safety standards:
Cabinet: IP54 standard

Marking Unitf (Optical core components）: IP54 standard

Weight:
Standard unit：approx.34kg

Specific model:
