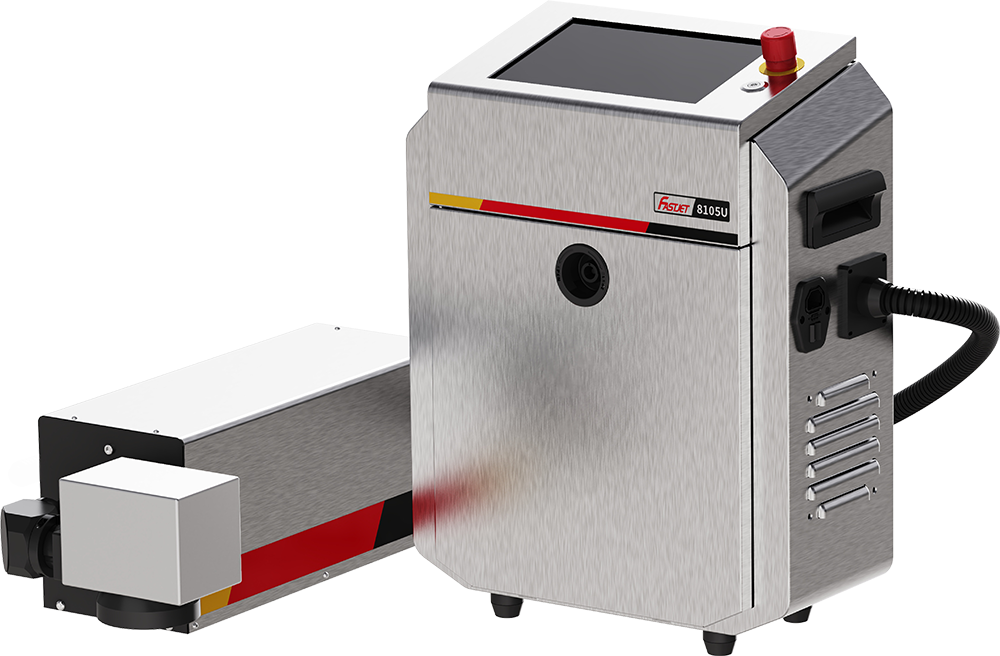

F8100U

UV laser marking system

Adopting memory system for unexpected powering off and automatic restoring of all the settings after restarting.

Embedded operating system base on Linux, dedicated machine for special use, natural immunity to various computer viruses.

Brand New Structure Design

Monolayer mainboard
Dual power supply
Multiple protection circuits
Modular optical electric system

User Friendly man-machine interaction system

Clean and tidy for easy operation
What you see is what you get operation system
Air cooling enabling maintenance free and longer lifetime for laser source

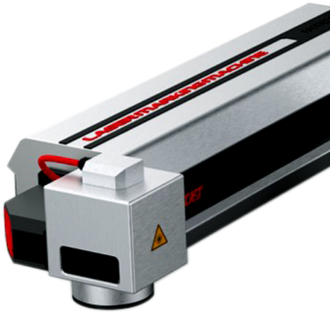

Newly designed printerhead

Compact and light, easy to carry and installed.
High gravity and latest technology call laser source adapting to most macterious in most industries.
Flexibility adjusted bracket enabling easy installation in different production lines.

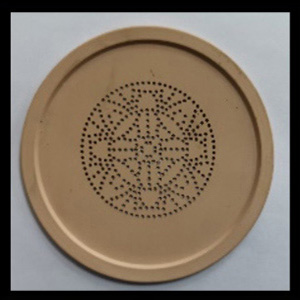

Display of Print Sample

Specifications

Marking speed:
Up to 2,000 characters/second^⑴

Line speed:
Up to 200/min^⑴

Focus options:
Standard F160（100×100）

Optional F100（70×70)，F210（140×140), F254（170×170)，F300（220×220)

Wave lengths:
355nm

Marking format:
Standard industrial fonts (Type1 Windows®TrueType®) and single line font

Machine readable codes (OCR, 2D matrix, etc)

Bar codes: code128A, code128B, code128C, code39, code93,

QR-Code, Data Matrix, Aztec-Code, Han Xin-Code

Graphics, Logos, symbols, etc

Linear, circular, angular, reverse, rotate sequential and batch numbering

Automatic date, layer and time code, real time clock

Dot model will be faster for marking

Laser tube:
Solid-state UV laser

Beam deflection:
Steer beam with digital high-speed galvanometer scanners

User interface:
Personalized touch control screen, humanized operation, easy to learn

^⑴Maximum marking and line speed is application dependent

Communication:
UDP,TCP/IP and RS232

Inputs for encoder and product detector triggers

4 inputs/4 outputs for start/stop signals, machine/operator interlocks, alarm outputs; in addition to the safety circuits

Customer-specific solutions available

Integration:
Flexible beam delivery options (beam extension unit/beam turning unit)

Electrical requirement:
110-240 VAC (To be noted when ordering),〜50/60 Hz,

1 PH，0.70kW / 2PH，1.50kW

Cooling system:
Air cooled

Environment:
Temperature 5-40° C ⑷-104° F)

Humidity 10%-90%, no condensing

Sealing and safety standards:
Cabinet: IP54 standard

Marking Unit: IP54 standard

Weight:
Standard unit: approx. 28kg

Specific model:
